Troubleshooting
My file upload keeps failing — what now?
Most failed uploads are the connection dropping mid-transfer or the wrong file being picked — check both before retrying.
Updated 2026-10-26 · 3 min read
The original file goes from your browser through the portal into storage, so a failed upload is almost always the transfer being interrupted rather than the file being rejected. A read is a few megabytes; files over 64 MB are refused.
Did the connection hold for the whole upload?
The upload has to complete in one go. A laptop that sleeps, a phone that switches from Wi-Fi to mobile data, or a workshop connection that drops for a second will all stop it mid-transfer.
Retry on a stable connection and leave the tab open and awake until the upload reports it has finished.
Am I uploading the right file?

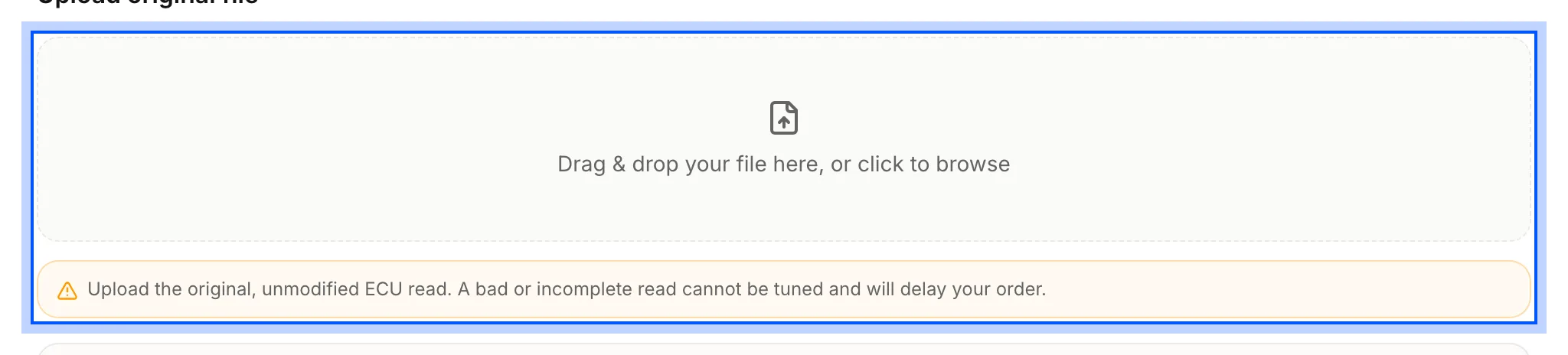

Upload the original read — the file your tool saved when it read the ECU (engine control unit). Two things that are not that file, and get picked by mistake:
- The tool's own project or log file, which is not the read.
- An already-modified file from a previous job.
If the portal warns that the file does not look like the vehicle you selected, take the warning seriously — it compares the file against what it knows about that ECU, and it is usually right.
Is the file coming out of a zip?
Extract it first and upload the file itself. A zip containing the read is not the read, and the supplier receives an archive they have to guess their way into.
The upload finished but the order will not submit
That is a different problem: the file is stored and something else on the form is incomplete. Most often the car is missing: when your supplier needs the car on every order, the line next to Continue reads "Add the car to continue: look it up, search, or enter it yourself." If the plate lookup and the search both come up empty, the Not listed tab lets you type the car in — make, model, engine and year are enough (how-ordering-works). Otherwise scroll the form for the field marked as needing attention, such as a required option that has not been picked.
Why does it say my file will arrive as “….bin”?
When the file you uploaded has a name without an extension, an amber notice appears under the upload area as soon as you pick the file. It is advisory only: it never blocks the order, and the file is stored under exactly the name it has. It tells you what the delivered download will be called — an extension-less name gains ".bin", so a file named "MyRead" arrives as "MyRead.bin" and tuning tools recognise and open it. If that is not what you want, rename the file and upload it again; otherwise carry on.
A name longer than 255 characters is shortened when it is saved: the end of the name is cut so it fits, and the extension (".bin", ".ori" …) is always kept. The same notice tells you so when you pick the file; rename it first if the full name matters.
In the rare case a download is refused with "This file's name cannot be produced safely — contact support so the file can be renamed and re-delivered", that message is itself the remedy: retrying will not help. Contact support — they rename the file and deliver it again.
It still fails on a good connection
Try the same file from a different browser. If it fails there too, note the file's name and size and open a support ticket — attach nothing, the file is already in storage and support can find it from the draft order.
Didn’t find your answer?
Sign in and open a ticket, or contact us — a question that needed a person is also how this article gets better.
Last verified 2026-10-26.
